FC-125 FU

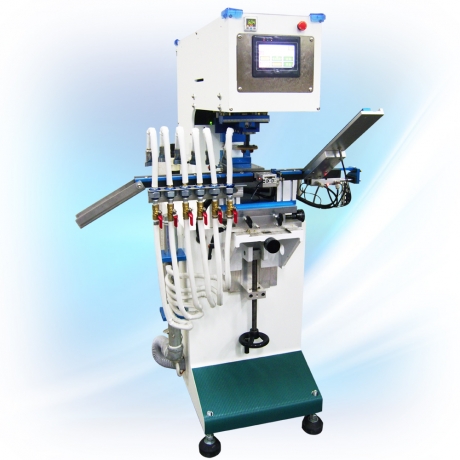

FC-125 FU Single Color Ink Cup Pad Printer (Feeding Sensor/Auto Ejecting)
FC-125 FU-1FC-125 FU-3FC-125 FU-5FC-125 FU-4FC-125 FU-6FC-125 FU-7FC-125 FU-2FC-125 FU-8FC-125 FU-9FC-125 FU-10
  • FC-125 FU-1
  • FC-125 FU-3
  • FC-125 FU-5
  • FC-125 FU-4
  • FC-125 FU-6
  • FC-125 FU-7
  • FC-125 FU-2
  • FC-125 FU-8
  • FC-125 FU-9
  • FC-125 FU-10
FC-125 FU Single Color Ink Cup Pad Printer (Feeding Sensor/Auto Ejecting)：
  • 4.3 Inches Color Touch Panel

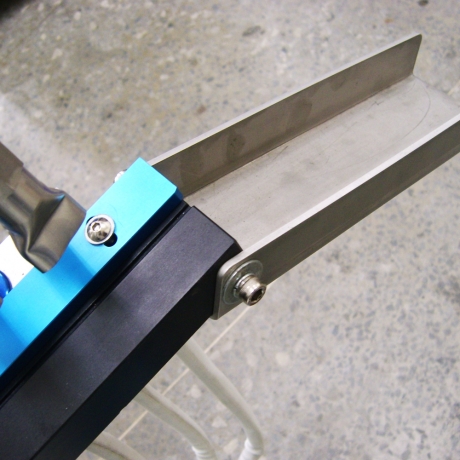

  • Manual Feeding Rail
  • Cylinder-Style Progressive Propulsion

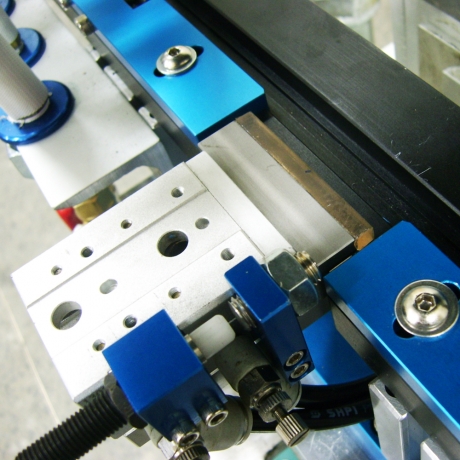

  • Cylinder Sliding Base Positioning，Auto Clamping before Printing，Fast and Accurate。
  • Piece by Piece Freefall Feeding

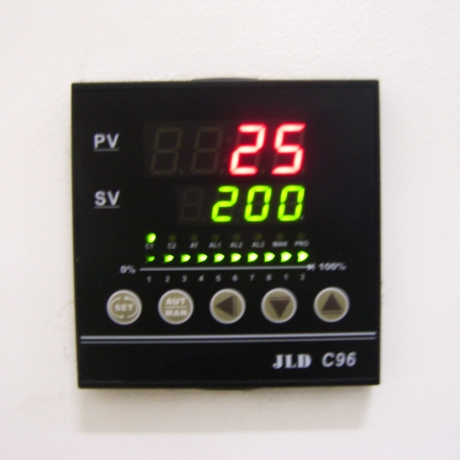

  • Hot Air Device，Increase Object Drying Speed
  • Abnormal Alarm Display，Convenient to Resolve the Problems

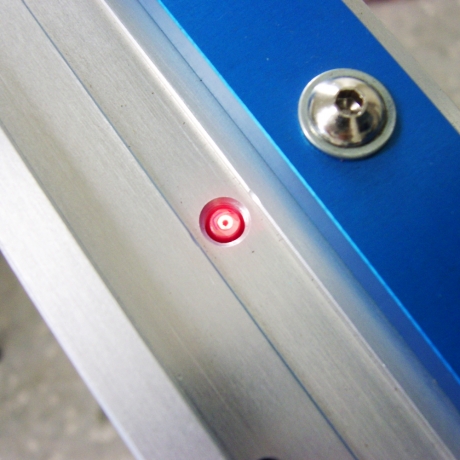

  • When the quantity on rail is lower than optical fiber sensor，the machine stops (This function can be set "Not Activated")

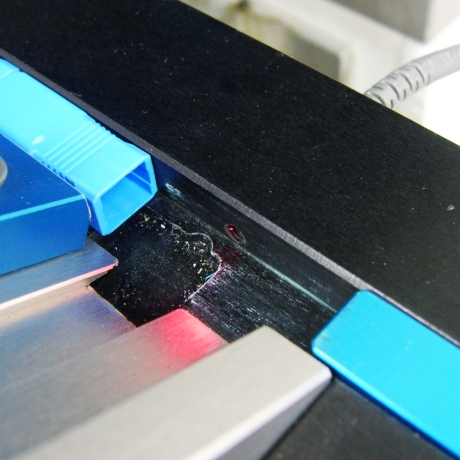

  • "No Object Sensor" - Auto stop when it's out of objects
  • Exclusive Patented Device，Patent No: M311585
Model Color Steel Plate (mm) Capacity/hr Dimension (cm) Net W.
FC-125 FU 1
L:200 W:90 H:10
 900~1200 Pcs
L:94 W:83 H:130
 120KG

FC-125 FU Single Color Ink Cup Pad Printer (Feeding Sensor/Auto Ejecting)
FC-125 FU Single Color Ink Cup Pad Printer (Feeding Sensor/Auto Ejecting)
pdfFC-125 FU Single Color Ink Cup Pad Printer (Feeding Sensor/Auto Ejecting)Download
pdfDM-FC-125 FU Single Color Ink Cup Pad Printer (Feeding Sensor/Auto Ejecting)Download
