FC-125 OP-3

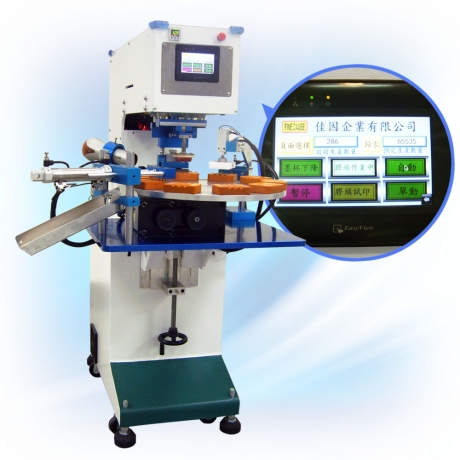

FC-125OP-3 Round-Plate Single-Color Ink Cup Pad Printer (Positioning Device/Auto Ejecting)

FC-125 OP-3 Round-Plate Single-Color Ink Cup Pad Printer

Precise Splitter - Precise Positioning (+-0.03mm)
Exclusive Patented "Adjustable Ink-Scraping Device" (Patent No. M311585). Adjust Scraping Pressure Easily.
Electronic Pressure Sensor
PANASONIC Programmable Logic Controller，4.3 inches/ 65536 Color TFT Touched Panel
Bugs Detector，Monitor Display
input,ouput，Full Display

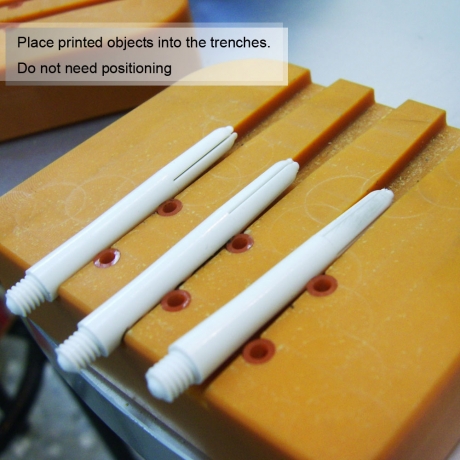

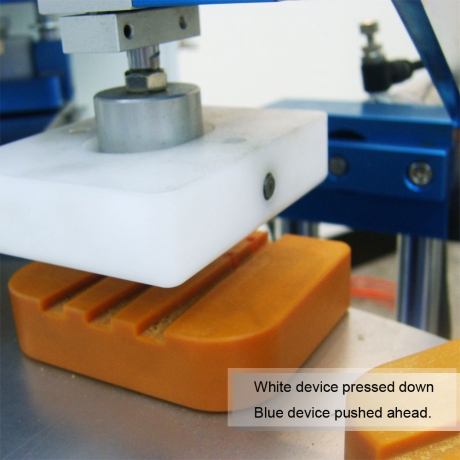

Auto Holding Device. Objects are placed randomly and the positioning device push them into correct position.

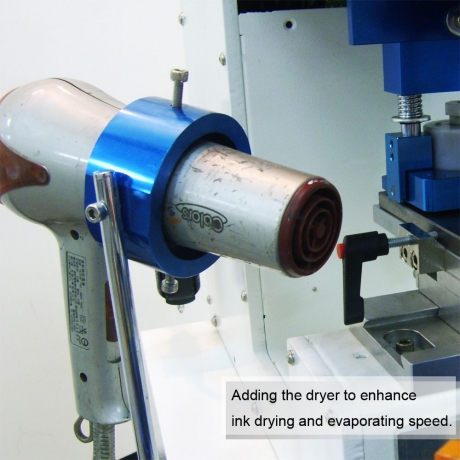

Dryer Equipped，Enhance evaporating and drying the ink.

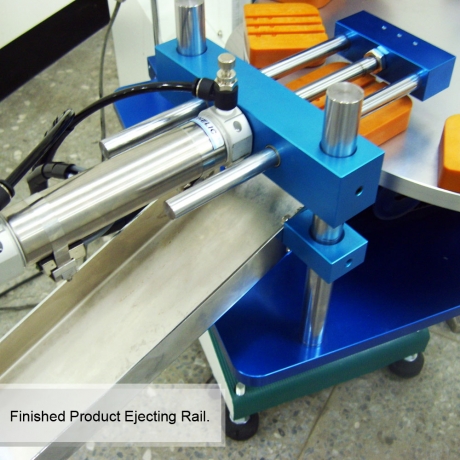

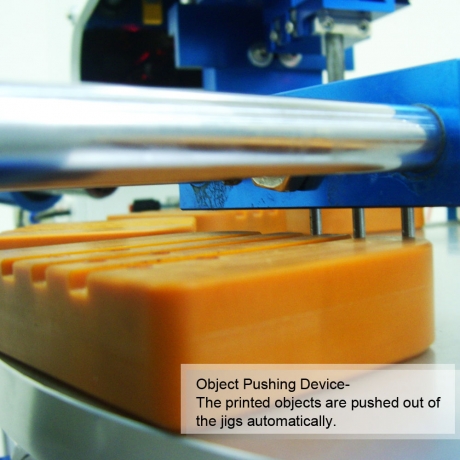

Auto Ejector with Rail.

Model	Color	Steel Plate (mm)	Capacity/Hr	Dimension (cm)	Net W.
FC-125OP-3	1	L:90 W:200 H:10	1200~1800	L:100 W:82 H:120	150KG
