Suitable For:
Toys, stationery, jewelry, watch surface, electronic products, switches, buttons, metal finished and semi-finished products, ceramic glass products, products with uneven surface.
| ＊Fine Cause produced pad printers own exclusive patent (No. M311585) and is different from others which only use magnet for suction function. Our new double-axis ink-scarping system makes it better and cleaner for scraping the ink | ||

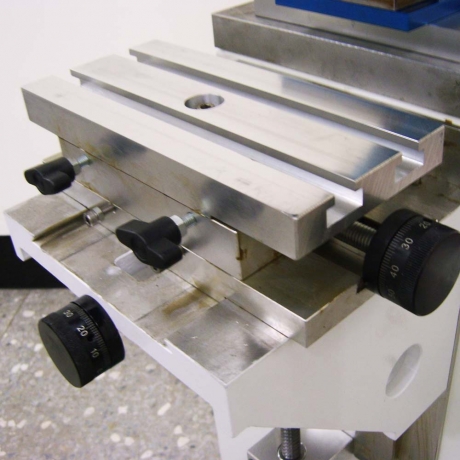

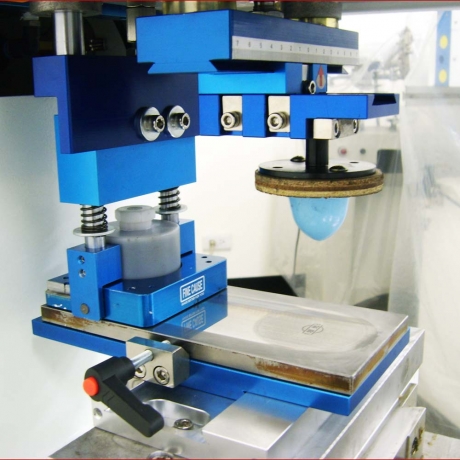

| 2-Axis Indenpendent Ink-Scraping System | Large XY Base - Convenient and Accurate Positioning | Japan DAIDO Oilless Bearing |
 |  |  |
| Model | Color | Steel Plate (mm) | Capacity/hr | Dimension (cm) | Net W. |
|---|---|---|---|---|---|

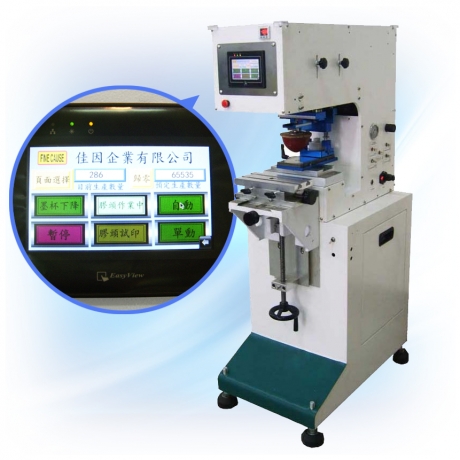

| FC-125 | 1 | L:200 W:90 H:10 | 1200~1800 Pcs | L:65 W:40 H:128 | 105 Kgs |
| Model/Spec. | FC-140X Single-Color Ink-Cup Pad-Printer | FC-101 Mini Single-Color Ink-Cup Pad-Printer | FC-125 Single-Color Ink-Cup Pad-Printer | FC-250 Horizontal Scraping Single-Color Ink-Cup Pad-Printer | FC-259 Single-Color Ink-Cup Pad-Printer-90Ø |
|---|---|---|---|---|---|
| Air Pressure (kg/cm2 psi) | 4~6 | 4~6 | 4~6 | 4~6 | 4~6 |
| Power Consumption (A) | 3 | 3 | 3 | 3 | 3 |
| Voltage (V) | 110V & 220V | 110V & 220V | 110V & 220V | 110V & 220V | 110V & 220V |
| Platform Size (mm) | 60*110 | 80*220 | 80*220 | 80*220 | 80*220 |
| Max. Print Area (mm) | 60Ø | 60Ø | 60Ø | 55*150 | 90Ø |
| Max. Height of Printed Object (mm) | 120 | 180 | 180 | 180 | 180 |
| Platform Moving Distance (mm) | 125 (Front/Back) | 125 (Front/Back) | 125 (Front/Back) | 160 (Left to Right) | 125 (Front/Back) |
| Height - Pad Stand to Steel Plate (mm) | 94 | 94 | 100 | 100 | 100 |
| Max. Steel Plate Size (mm) | 90*200 | 90*200 | 90*200 | 80*350 | 120*240 |
