FA-400C/500C

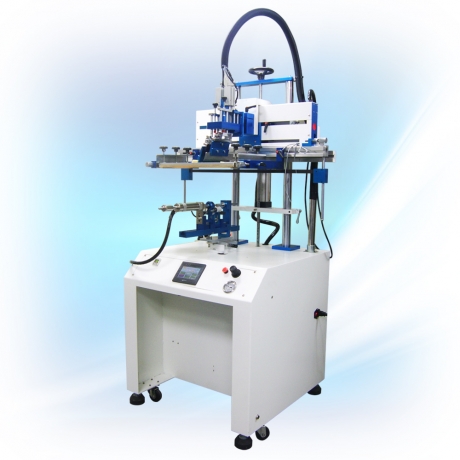

FA-400C/500C Curved Screen Printer
FA-400CFA-400C-1ENFA-400C-2FA-400C-3FA-400C-4FA-400C-5EN
  • FA-400C
  • FA-400C-1EN
  • FA-400C-2
  • FA-400C-3
  • FA-400C-4
  • FA-400C-5EN

  • 65536 Color TFT Touch Panel
  • PLC Control，Easy to Add Funtions

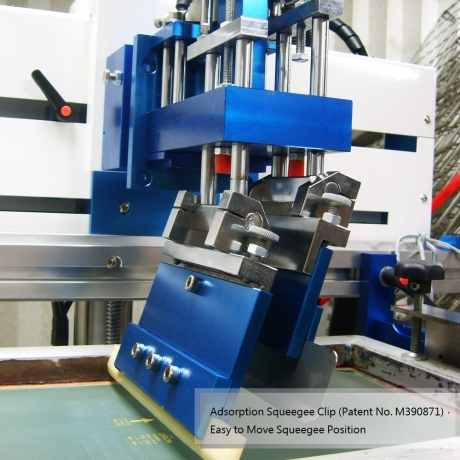

  • Adsorption Squeegee Clip (Patent No. M390871)，Easy to Move Squeegee Position，Esay to Disassemble
  • Using Germany FESTO Pneumatic Cylinder. High-Functioning, Low Breakdown Rate. Better Machine Performance.
  • Transmission System - Japanese Bearings and Shafts. Attrition Resistance, Long Life
  • Malfunction Detector / Screen Message Display
  • Adjustable Squeegee Pressure
  • Electronic Pressure Sensor. Auto Stop When the Pressure is Too Low and Shown on Marquee.
  • Pneumatic Squeegee Stand / Moving Up and Down

Suitable For:

Round Shape, Curved Surface Printing. For Example: Shampoo Bottles, Cosmetic Bottles.
Model Color
Max. Print Area
 Capacity/hr Dimension (cm) Net W.
FA-400C 1
300X150MM Ø90
 600~1800 Pcs
L:70 W:75 H:165
 180 Kgs
FA-500C 1
400X180MM Ø130
 600~1800 Pcs
L:90 W:60 H:180
 195 Kgs

Model/Spec.
FA-100C
Curved Screen Printer
FA-300C
Curved Screen Printer
FA-400C
Curved Screen Printer
FA-500C
Curved Screen Printer
Air Pressure
(kg/cm2 psi)		 4~6 4~6 4~6 4~6
Power Consumption
(A)
3
3
3
3
Voltage (V)
110 V & 220 V
110 V & 220 V
110 V & 220 V
110 V & 220 V
Max. Print Area
(mm)
30ø
70ø
100ø
130ø
Max. Height of Printed Object
(mm)
100
300
400
500
Scraping Distance
(mm)
100
300
400
500
Platform Height
(mm)
Lift-Arm Type
0~150
0~150
0~150
Max. Screen Plate Size
(cm)
30*50
30*60
50*72
50*82
Screen Plate Trimming Distance
(mm)
/
±25
±25
±25
Platform Trimming Distance
(mm)
/
±8
±8
±8
Platform Tilt Angle/
Scraping Stand Lift Distance
(mm)		 / 10 Degree/50 10 Degree/50 10 Degree/50
