FC-259
FC-259 Single-Color Ink-Cup Pad Printer
FC-259-0FC-259-1enFC-259-2enFC-259-4FC-259-3en
  • FC-259-0
  • FC-259-1en
  • FC-259-2en
  • FC-259-4
  • FC-259-3en

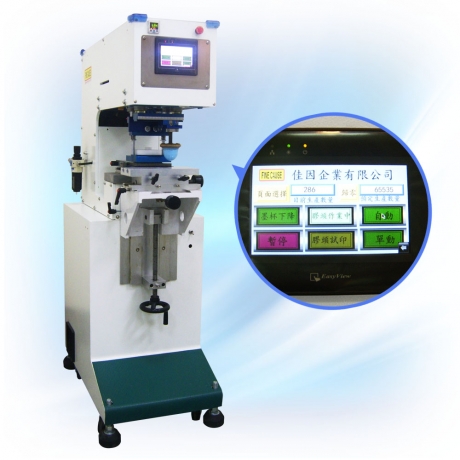

  • 65536 Color TFT Touch Panel
  • PLC Control, Easy to Add Functions
  • Adjustable Ink-Scraping Devide (Pantent No. M311585). Easy to adjust the pressure of the Ink-Scraping.

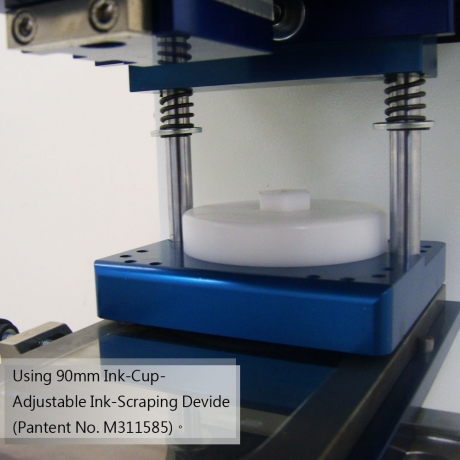

  • Using 90mm Ink-Cup - Enlarged Printing Area
  • Malfunction Detector. Screen Display
  • Adjustable Ink-Cup Pressure

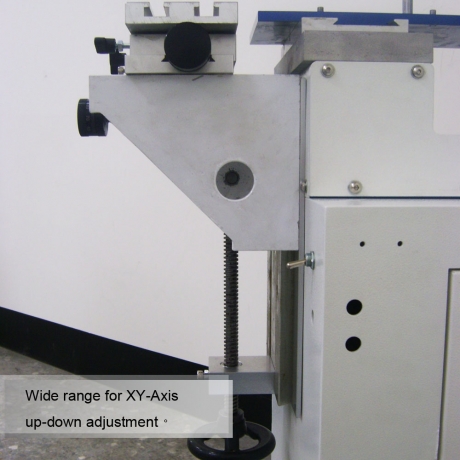

  • XY-Axis Fine Tooth Adjustment, Easy to Position
  • Appointed by Many Contact Lens and Electronic Factories
  • Embedded Cost Saving Light bulb
Suitable For:

Plastic items like Toys, Stationery, Decoration, Watch Surface, Electronic Products, Switches, Buttons, Lighters and etc. Metal finished and semi-finished products, Ceramics, Glass Products and other uneven surface of the printing.
Additional precision indexing plate makes it easy for feeding and ejecting
＊Fine Cause produced pad printers own exclusive patent (No. M311585) and is different from others which only use magnet for suction function. Our new double-axis ink-scarping system makes it better and cleaner for scraping the ink.

2-Axis Indenpendent Ink-Scraping System

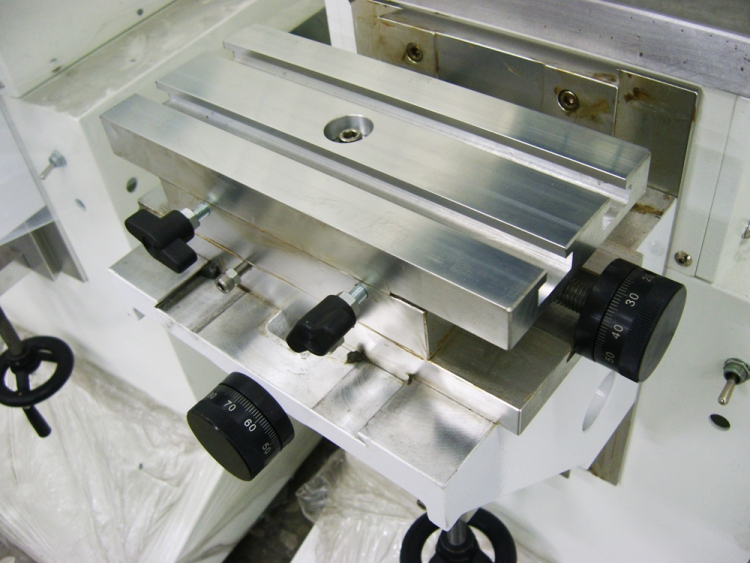

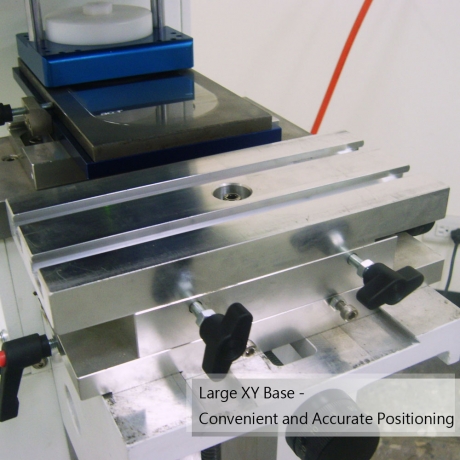

Large XY Base - Convenient and Accurate Positioning
Japan DAIDO Oilless Bearing

Model Color Steel Plate (mm) Capacity/hr Dimension (cm) Net W.
FC-259 1
L:240 W:120 H:10
 1200~1800
L:63 W:40 H:120
 105KG

Model/Spec. FC-140X
Single-Color
Ink-Cup Pad-Printer		 FC-101 Mini
Single-Color
Ink-Cup Pad-Printer		 FC-125
Single-Color
Ink-Cup Pad-Printer		 FC-250
Horizontal Scraping
Single-Color
Ink-Cup Pad-Printer		 FC-259
Single-Color
Ink-Cup Pad-Printer-90Ø
Pressure
(kg/cm2 psi)		 4~6 4~6 4~6 4~6 4~6
Power (A)
Ampere
3
3
3
3
3
Voltage (V)
110V & 220V
110V & 220V
110V & 220V
110V & 220V
110V & 220V
Platform Size
(mm)
60*110
80*220
80*220
80*220
80*220
Max. Print Area
(mm)
60Ø
60Ø
60Ø
55*150
90Ø
Max. Height of
Printed Object
(mm)
120
180
180
180
180
Platform Moving Distance
(mm)
125 (Front/Back)
125 (Front/Back)
125 (Front/Back)
160 (Left to Right)
125 (Front/Back)
Height -
Pad Stand to Steel Plate
(mm)
94
94
100
100
100
Max.
Steel Plate Size
(mm)
90*200
90*200
90*200
80*350
120*240

FC-259 Single-Color Ink-Cup Pad Printer(Touch Panel)
FC-259 Single-Color Ink-Cup Pad Printer(Touch Panel)
pdfOPERATING MANUAL - Pad PrinterDownload
pdfDM-FC-259 Single-Color Ink-Cup Pad PrinterDownload
