FA-300C

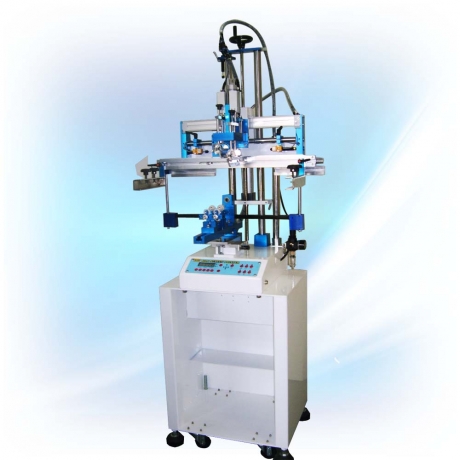

FA-300C Curved Screen Printer
FA-300C
  • FA-300C
  • Digital Micro Computer Controlled System. Diagnostic System Included. Easy to Operate and Maintenance
  • Using Germany FESTO Pneumatic Cylinder. High-Functioning, Low Breakdown Rate. Better Machine Performance
  • Penumatic Lifted Squeegee Set (Other brands are Hand-Pulled)
  • Can print up to 70mm D. x 150mm L.
  • Using SUJ2 High Frequency Harden Bearing Steel
  • One Piece Slid Bushing Design. Lightweight. Low Air Consumption. Rapid Speed

Suitable For:

Round Shape, Curved Surface Printing. For Example: Shampoo Bottles, Cosmetic Bottles
Model Color
Max. Print Area (mm)
 Capacity/hr Dimension (cm) Net W.
FA-300C 1
300X150 φ70
 600~1800
L:60 W:40 H:170
 90KG

Model/Spec.
FA-100C
Curved Screen Printer
FA-300C
Curved Screen Printer
FA-400C
Curved Screen Printer
FA-500C
Curved Screen Printer
Air Pressure
(kg/cm2 psi)		 4~6 4~6 4~6 4~6
Power Consumption
(A)
3
3
3
3
Voltage (V)
110 V & 220 V
110 V & 220 V
110 V & 220 V
110 V & 220 V
Max. Print Area
(mm)
30ø
70ø
100ø
130ø
Max. Height of Printed Object
(mm)
100
300
400
500
Scraping Distance
(mm)
100
300
400
500
Platform Height
(mm)
Lift-Arm Type
0~150
0~150
0~150
Max. Screen Plate Size
(cm)
30*50
30*60
50*72
50*82
Screen Plate Trimming Distance
(mm)
/
±25
±25
±25
Platform Trimming Distance
(mm)
/
±8
±8
±8
Platform Tilt Angle/
Scraping Stand Lift Distance
(mm)		 / 10 Degree/50 10 Degree/50 10 Degree/50
FA-300C Curved Screen Printer
FA-300C Curved Screen Printer
pdfOPERATING MANUAL - Small Screen PrinterDownload
