FA-200FR

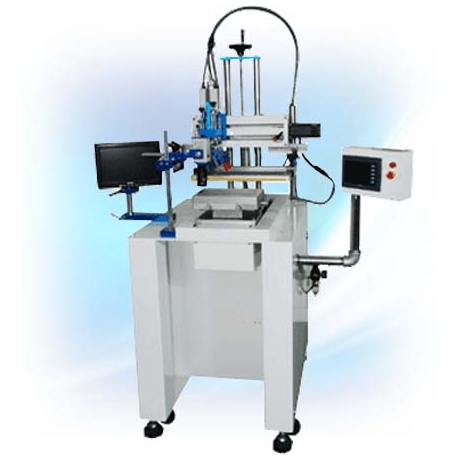

FA-200FR Servo Precision Screen Printer w/2 Shafts
FA-200FR
  • FA-200FR
  • Servo Driven Ink-Scraping and Object Tray Movement. Speed and Distance Are Controlled Digitally

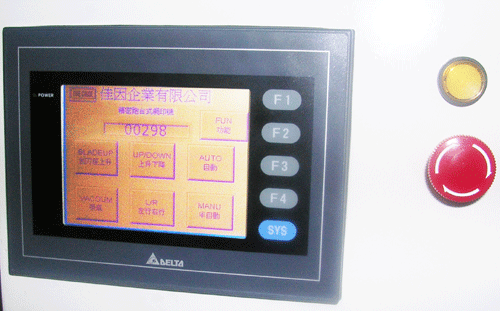

  • Touch Panel. Digitalized Printing Conditions. User-Friendly Interface. Complete Functions
  • Object Tray Rail - Linear Guideway w/Ballscrews. High Positioning
  • T-Shape Plateform and Suction Platform for Selection
  • C.C.D. Visual Detection or Automatic Visual Positioning System
  • T-Shape Platform Size: 220 mm X 150 mm

Suitable For:

Tin Paste, Silver Serum, Electronic Industry

  • Servomotor Driven. Precision. Stable
  • T-Shape Platform and Suction Platform for Selection
  • Ink-Scraping and Distance Controlled Digitally
All New Touched Panel. Digitalized Printing Conditions. User-Friendly Interface. Complete Functions

Model Color
Max. Print Area (mm)
 Capacity/hr Dimension (cm) Net W.
FA-200FR 1
L:500 W:300 H:20
 600~1800 Pcs
L:70 W:88 H:145
 120 Kgs
Ink-Scraping Distance: 200 MM Object Tray Moving Distance: 300 mm
T-Shape Platform Size: L:150 W:220 mm

FA-200FR Servo Precision Screen Printer w/2 Shafts
FA-200FR Servo Precision Screen Printer w/2 Shafts
pdfOPERATING MANUAL - Small Screen PrinterDownload
