Suitable For:
Printed Logo/Picture on All Kinds of Products. For Example: Telephone Keypad, SD Card, MP3, Remote Control and Etc. Plastic, Ceramics and Metal Products
Select the Suction Function, You can Print Lighter Products Like Paper, PVC Film, Acrylic and Etc.
| Model | Color | Max. Print Area (mm) | Capacity/hr | Dimension (cm) | Net W. |
|---|---|---|---|---|---|
| FA-400T | 1 | L:250 W:300 | 600~1800 Pcs | L:80 W:60 H:180 | 205 Kgs |
| FA-500T | 1 | L:300 W:400 | 600~1800 Pcs | L:90 W:60 H:180 | 207 Kgs |
| FA-600T | 1 | L:350 W:500 | 600~1800 Pcs | L:100 W:60 H:180 | 209 Kgs |
| Model/Spec. | FA-200 Screen Printer w/Platform | FA-300 Screen Printer w/Platform | FA-400T Screen Printer w/Platform | FA-500T Screen Printer w/Platform | FA-600T Screen Printer w/Platform |
|---|---|---|---|---|---|

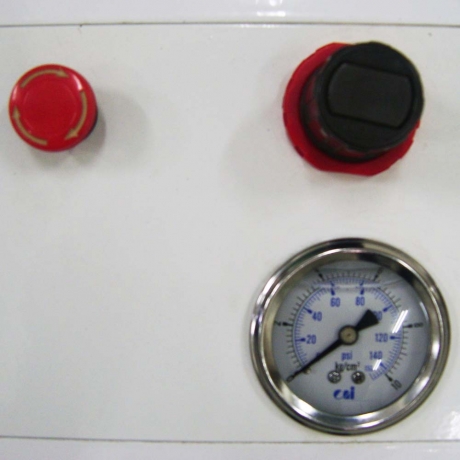

| Air Pressure (kg/cm2 psi) | 4~6 | 4~6 | 4~6 | 4~6 | 4~6 |
| Power Consumption (A) | 3 | 3 | 3 | 3 | 3 |
| Voltage (V) | 110V & 220V | 110V & 220V | 110V & 220V | 110V & 220V | 110V & 220V |
| Platform Size (mm) | 80*220 | 80*220 | 320*500 | 320*500 | 320*500 |
| Small Adsorption Platform Size (mm) | 150*220 | 150*220 | / | / | / |
| Max. Print Area (mm) | 120*100 | 140*200 | 250*300 | 300*400 | 350*500 |
| Max. Height of Printed Object (mm) | 300 | 300 | 400 | 400 | 400 |
| Scraping Distance (mm) | 200 | 300 | 400 | 500 | 600 |
| Platform Height (mm) | 0~100 | 0~100 | 0~150 | 0~150 | 0~150 |
| Max. Screen Plate Size (cm) | 30*50 | 30*60 | 50*72 | 50*82 | 50*92 |
| Screen Plate Trimming Distance (mm) | / | / | ±25 | ±25 | ±25 |
| Platform Trimming Distance (mm) | / | / | ±8 | ±8 | ±8 |
| Platform Tilt Angle/ Scraping Stand Lift Distance (mm) | 10 Degree/50 | 10 Degree/50 | 10 Degree/50 | 10 Degree/50 | 10 Degree/50 |
