FC-101

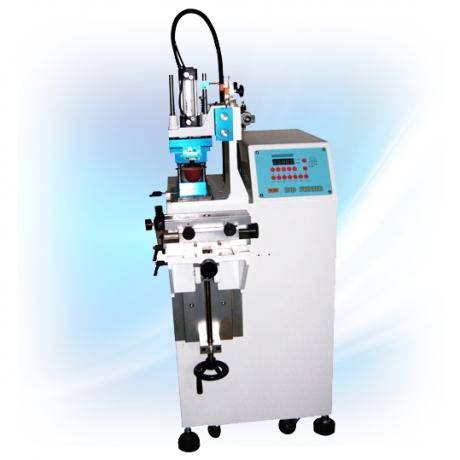

FC-101 Standard Single-Color Ink-Cup Pad-Printer
＊2010 New Model - Upgraded Version＊
FC-101X
  • FC-101X
  • Micro Computer Controlled Panel. Easy to Operate. Maifunction Auto Display System
  • Enlarged Machine Body. More Steady when Fast Running
  • Renovation Model
  • Adjustable Ink-Cup Scraping pressure
  • L-Shape Casting Structure. Strong and Easy to Operate
Suitable For:

Toys, Stationery, Jewelry, Watch Surface, Eelectronic Products, Switches, Buttons, Metal finished and semi-finished products, Ceramic Glass products, uneven surface printing.
Additional precision indexing plate makes it easy to access the materials. It is also able to expand the automation peripherals to increase production.


＊Fine Cause produced pad printers own exclusive patent (No. M311585) and is different from others which only use magnet for suction function. Our new double-axis ink-scarping system makes it better and cleaner for scraping the ink

2-Axis Indenpendent Ink-Scraping System

Large XY Base - Convenient and Accurate Positioning
Japan DAIDO Oilless Bearing



Model Color Steel Plate (mm) Capacity/hr Dimension (mm) Net W.
FC-101 1
L:200 W:90 H:10
 1200~1800 Pcs L:75 W:50 H:120 90 Kgs


Model/Spec. FC-140X
Single-Color
Ink-Cup Pad-Printer		 FC-101 Mini
Single-Color
Ink-Cup Pad-Printer		 FC-125
Single-Color
Ink-Cup Pad-Printer		 FC-250
Horizontal Scraping
Single-Color
Ink-Cup Pad-Printer		 FC-259
Single-Color
Ink-Cup Pad-Printer-90Ø
Pressure
(kg/cm2 psi)		 4~6 4~6 4~6 4~6 4~6
Power Consumtion
(A)
3
3
3
3
3
Voltage (V)
110V & 220V
110V & 220V
110V & 220V
110V & 220V
110V & 220V
Platform Size
(mm)
60*110
80*220
80*220
80*220
80*220
Max. Print Area
(mm)
60Ø
60Ø
60Ø
55*150
90Ø
Max. Height of
Printed Object
(mm)
120
180
180
180
180
Platform Moving Distance
(mm)
125 (Front/Back)
125(Front/Back)
125(Front/Back)
160 (Left to Right)
125(Front/Back)
Height -
Pad Stand to Steel Plate
(mm)
94
94
100
100
100
Max.
Steel Plate Size
(mm)
90*200
90*200
90*200
80*350
120*240
