FC-140X

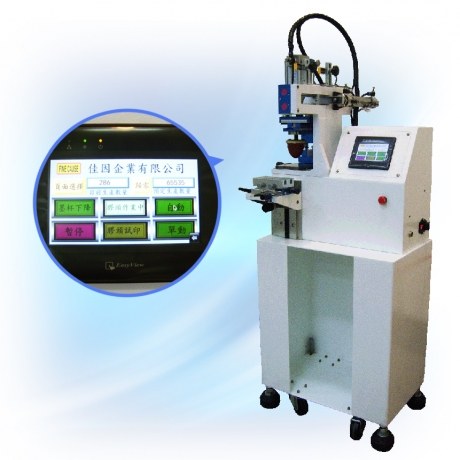

FC-140X Single-Color Ink-Cup Pad-Printer / Table Based
＊Table Based Mini Pad Printer＊
FC-140XFC-140X-2FC-140X-1
  • FC-140X
  • FC-140X-2
  • FC-140X-1
  • Convenient/Economic/Light Weight. Can be Moved by One Person and Small Car.
  • 65536 Color TFT Touch Panel
  • PLC Control，Easy to Add Functions
  • Malfunction Detector, Screen Display
  • Adjustable Ink-Scraping Device (Pantent No. M311585)，Easy to Adjust the ink-Scraping Pressure
  • L-Shape Casting Structure. Strong and Precise.
  • Exquisite Appearance, Lightweight


  • Suitable For:
    Toys, Stationery, Jewelry, Watch Surface, Eelectronic Products, Switches, Buttons, Metal finished and semi-finished products, Ceramic Glass products, uneven surface printing.
    Additional precision indexing plate makes it easy to access the materials. It is also able to expand the automation peripherals to increase production.

    * Fine Cause produced pad printers own exclusive patent (No. M311585) and is different from others which only use magnet for suction function. Our new double-axis ink-scarping system makes it better and cleaner for scraping the ink.

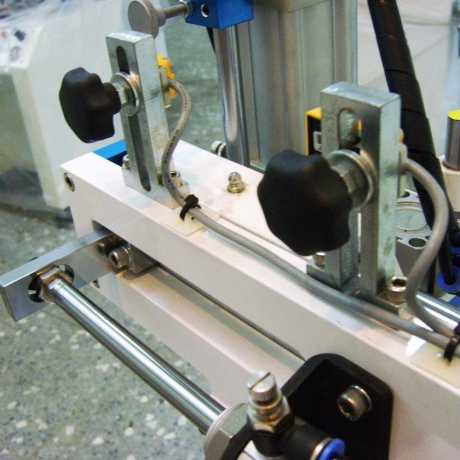

    2-Axis Ink-Scarping System

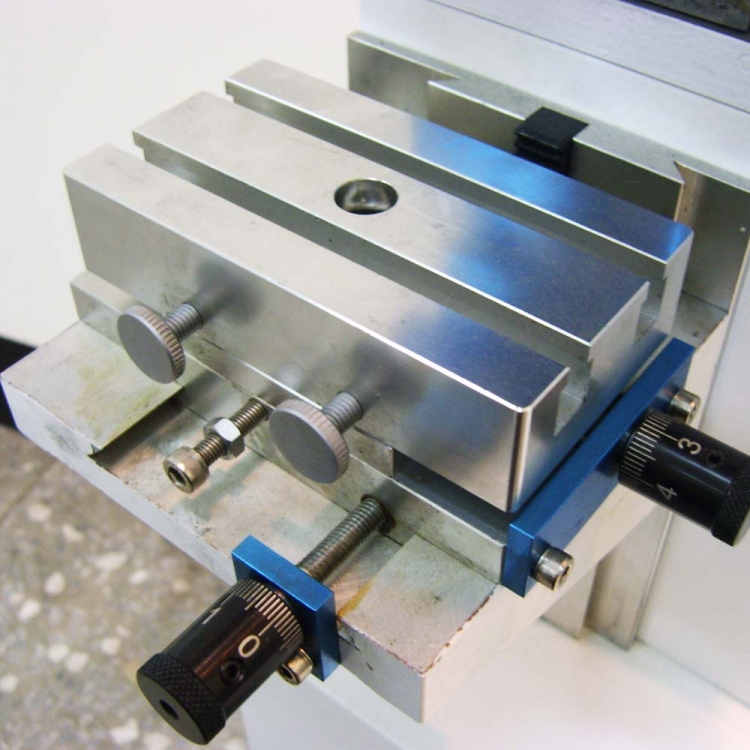

    Large XY Base-Convenient and Accurate Positioning

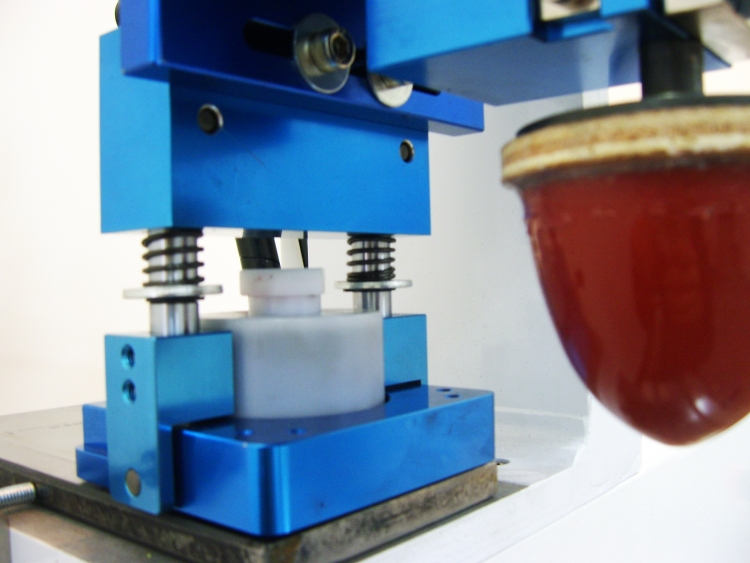

    Japan DAIDO Oliless Bearing

Model Color Steel Plate (mm) Capacity/hr Dimensin (cm) Net W.
FC-140X 1 L:200 W:90 H:10 1200~1800 L:60 W:60 H:125 30KG

Model/Spec. FC-140X
Single-Color
Ink-Cup Pad-Printer		 FC-101 Mini
Single-Color
Ink-Cup Pad-Printer		 FC-125
Single-Color
Ink-Cup Pad-Printer		 FC-250
Horizontal Scraping
Single-Color
Ink-Cup Pad-Printer		 FC-259
Single-Color
Ink-Cup Pad-Printer-90Ø
Pressure
(kg/cm2 psi)		 4~6 4~6 4~6 4~6 4~6
Power Consumtion
(A)
3
3
3
3
3
Voltage (V)
110V & 220V
110V & 220V
110V & 220V
110V & 220V
110V & 220V
Platform Size
(mm)
60*110
80*220
80*220
80*220
80*220
Max. Print Area
(mm)
60Ø
60Ø
60Ø
55*150
90Ø
Max. Height of
Printed Object
(mm)
120
180
180
180
180
Platform Moving Distance
(mm)
125 (Front/Back)
125(Front/Back)
125(Front/Back)
160 (Left to Right)
125(Front/Back)
Height -
Pad Stand to Steel Plate
(mm)
94
94
100
100
100
Max.
Steel Plate Size
(mm)
90*200
90*200
90*200
80*350
120*240
