FA-400F/500F/600F

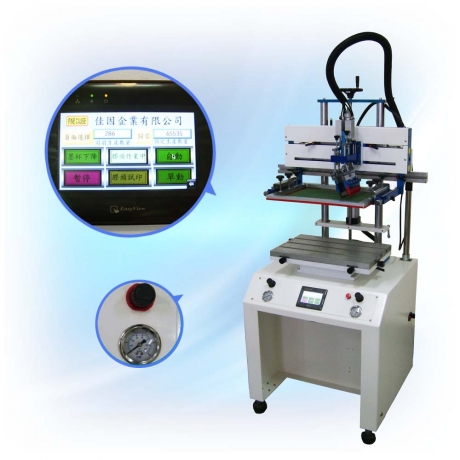

FA-400F/500F/600F Screen Printer w/Suction Function
FC-400-500-600C
  • FC-400-500-600C
  • 65536 Color TFT Touch Panel
  • PLC Control，Easy to Add Functions
  • Adsorption Squeegee Clip (Patent No. M390871)，Easy to Move Squeegee Position，Esay to Disassemble
  • Using Germany FESTO Rodless Pneumatic Cylinder
  • Malfunction Detector / Screen Message Display
  • Adjustable Squeegee Pressure
  • Electronic Pressure Sensor. Auto Stop When the Pressure is Too Low and Shown on Marquee.
  • Pneumatic Squeegee Stand / Moving Up and Down


Suitable For:

Printed Logo/Picture on All Kinds of Products. For Example: Telephone Keypad, SD Card, MP3, Remote Control and Etc. Plastic, Ceramics and Metal Products
Select the Suction Function, You can Print Lighter Products Like Paper, PVC Film, Acrylic and Etc.
Model Color
Max. Print Area (mm)
 Capacity/hr Dimension (cm) Net W.
FA-400F 1 L:250 W:300 600~1800 Pcs
L:80 W:60 H:180
 205 Kgs
FA-500F 1
L:300 W:400
 600~1800 Pcs
L:90 W:60 H:180
 207 Kgs
FA-600F 1 L:350 W:500 600~1800 Pcs
L:100 W:60 H:180
 209 Kgs

Model/Spec.
FA-200F
Screen Printer
w/Suction Function
FA-300F
Screen Printer
w/Suction Function
FA-400F
Screen Printer
w/Suction Function
FA-500F
Screen Printer
w/Suction Function
FA-600F
Screen Printer
w/Suction Function
Air Pressure
(kg/cm2 psi)		 4~6 4~6 4~6 4~6 4~6
Power Consumption
(A)
3
3
3
3
3
Voltage (V)
220V
220V
220V
220V
220V
Platform Size
(mm)
80*220
80*220
320*500
320*500
320*500
Max. Print Area
(mm)		 120*100 140*200 250*300 300*400 350*500
Max. Height of Printed Object
(mm)		 300
300
400
400
400
Scraping Distance
(mm)		 200
300
400
500
600
Platform Height
(mm)
0~100
0~100
0~150
0~150
0~150
Max. Screen Plate Size
(cm)		 30*50
30*60
50*72
50*82
50*92
Screen Plate Trimming Distance
(mm)
±25
±25
±25
±25
±25
Platform Trimming Distance
(mm)
±8
±8
±8
±8
±8
Platform Tilt Angle/
Scraping Stand Lift Distance
(mm)		 10 Degree/50 10 Degree/50 10 Degree/50 10 Degree/50 10 Degree/50

FA-400F Screen Printer w/Suction Function
FA-400F Screen Printer w/Suction Function
